fairport::subnode_leaf_block Class Reference

Contains the actual subnode information. More...

#include <node.h>

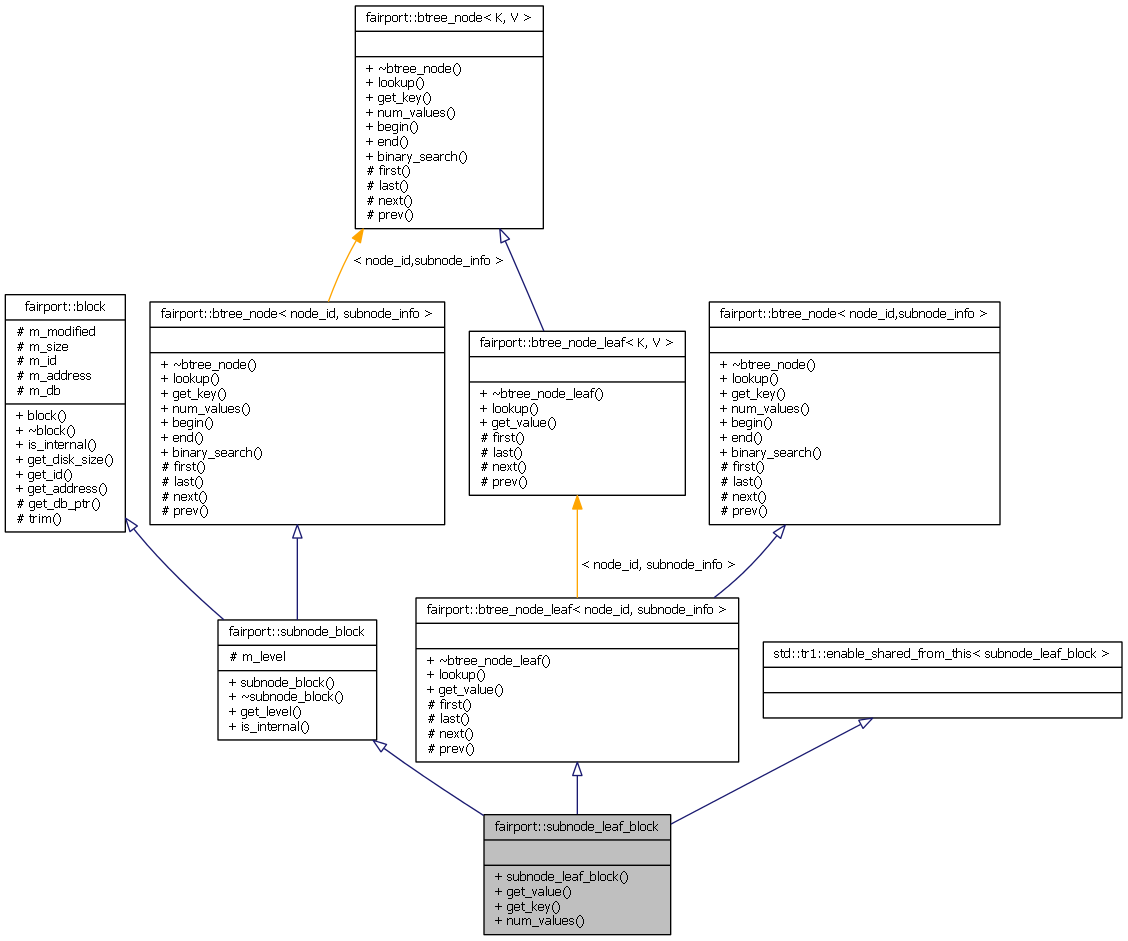

Inheritance diagram for fairport::subnode_leaf_block:

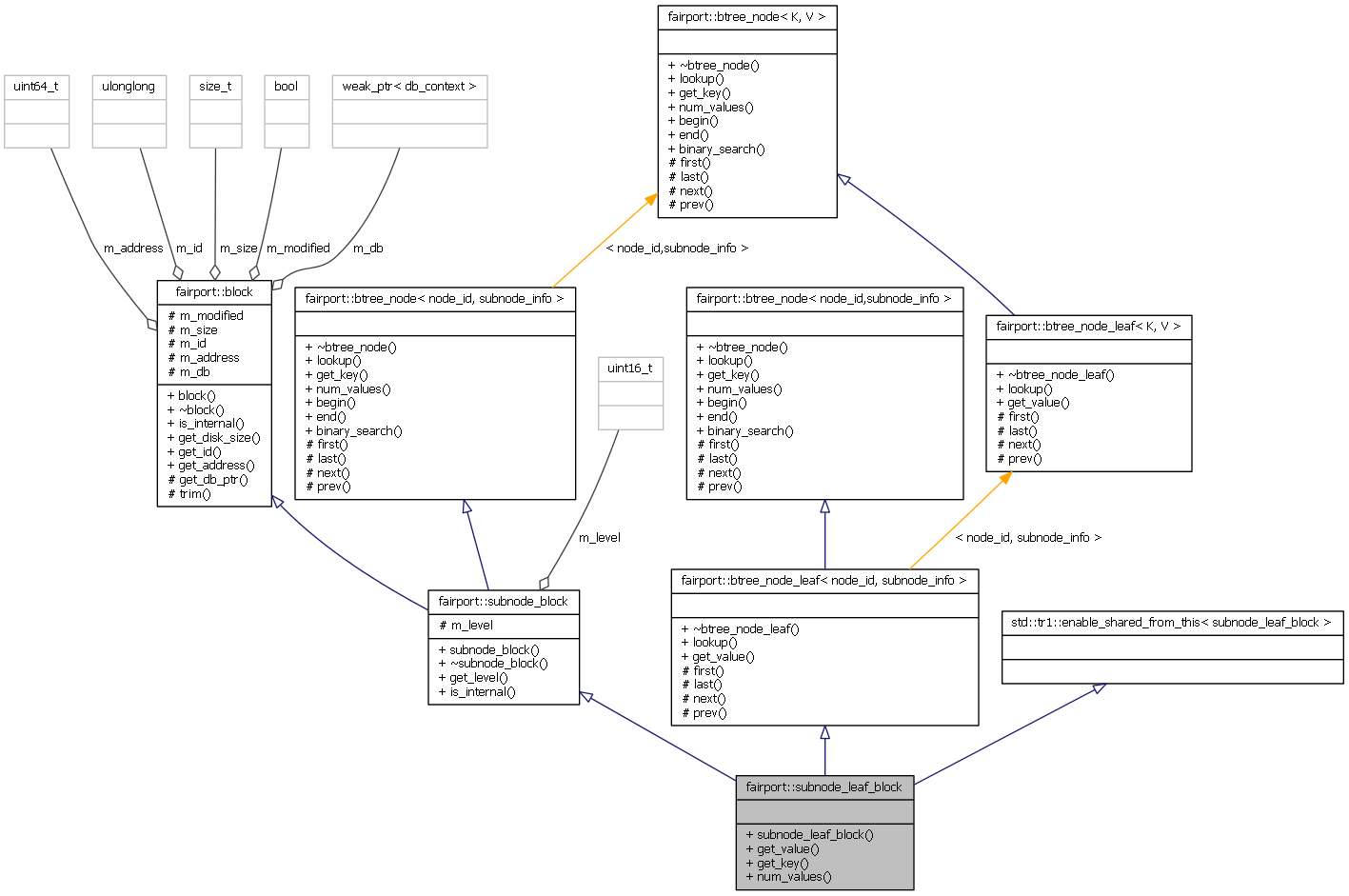

Collaboration diagram for fairport::subnode_leaf_block:

List of all members.

Public Member Functions
	subnode_leaf_block (const shared_db_ptr &db, const block_info &info, std::vector< std::pair< node_id, subnode_info > > subnodes)
	Construct a subnode_leaf_block from disk.
const subnode_info &	get_value (uint pos) const
	Returns the value at the associated position on this leaf node.
const node_id &	get_key (uint pos) const
	Returns the key at the specified position.
uint	num_values () const
	Returns the number of entries in this btree_node.

---

Detailed Description

Contains the actual subnode information.

Typically a node will point directly to one of these. Because they are blocks, and thus up to 8k in size, they can hold information for about ~300 subnodes in a unicode store, and up to ~600 in an ANSI store.

See also:

[MS-PST] 2.2.2.8.3.3.1

Definition at line 729 of file node.h.

---

Constructor & Destructor Documentation

fairport::subnode_leaf_block::subnode_leaf_block	(	const shared_db_ptr &	db,
		const block_info &	info,
		std::vector< std::pair< node_id, subnode_info > >	subnodes
	)		[inline]

Construct a subnode_leaf_block from disk.

Parameters:

[in]	db	The database context
[in]	info	Information about this block
[in]	subnodes	Information about the subnodes

Definition at line 740 of file node.h.

---

Member Function Documentation

const node_id& fairport::subnode_leaf_block::get_key

(

uint

pos

)

const [inline, virtual]

Returns the key at the specified position.

This is specific to this btree_node, not the entire tree

Parameters:

[in]

pos

The position to retrieve the key for

Returns:

The key at the requested position

Implements fairport::btree_node< K, V >.

Definition at line 750 of file node.h.

const subnode_info& fairport::subnode_leaf_block::get_value

(

uint

pos

)

const [inline, virtual]

Returns the value at the associated position on this leaf node.

Parameters:

[in]

pos

The position to retrieve the value for

Returns:

The value at the requested position

Implements fairport::btree_node_leaf< node_id, subnode_info >.

Definition at line 748 of file node.h.

uint fairport::subnode_leaf_block::num_values

(

)

const [inline, virtual]

Returns the number of entries in this btree_node.

This is specific to this btree_node, not the entire tree

Returns:

The number of keys in this btree_node

Implements fairport::btree_node< K, V >.

Definition at line 752 of file node.h.

---

The documentation for this class was generated from the following file:

• fairport/ndb/node.h
