fairport::btree_node_leaf< K, V > Class Template Reference

Represents a leaf node in a BTree structure. More...

#include <btree.h>

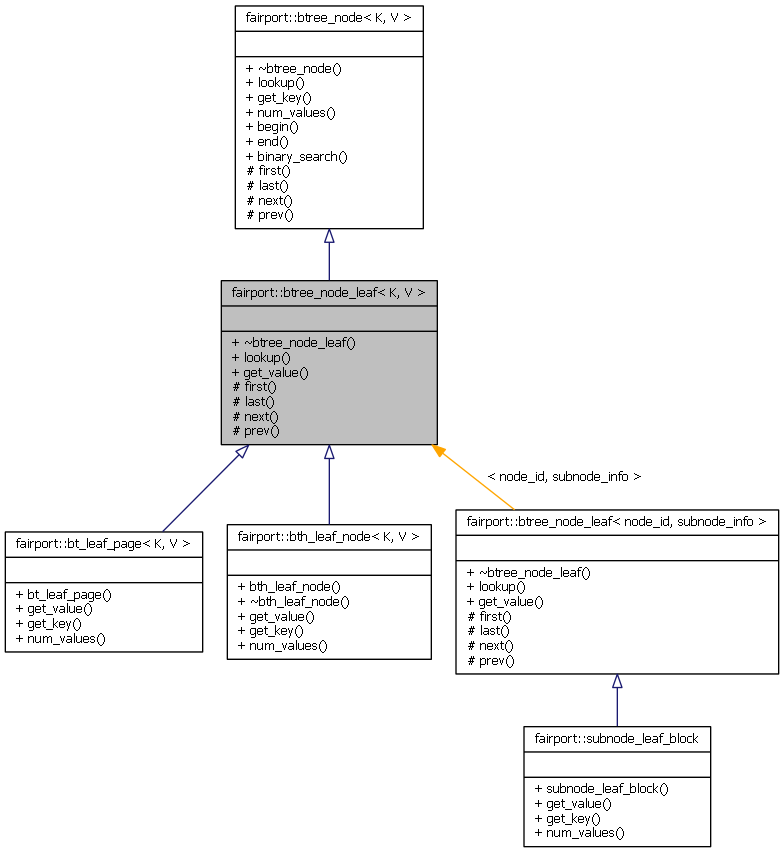

Inheritance diagram for fairport::btree_node_leaf< K, V >:

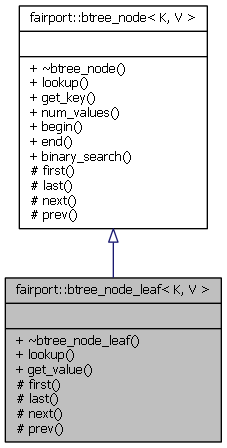

Collaboration diagram for fairport::btree_node_leaf< K, V >:

List of all members.

Public Member Functions
virtual	~btree_node_leaf ()
const V &	lookup (const K &key) const
	Looks up the associated value for a given key.
virtual const V &	get_value (uint pos) const =0
	Returns the value at the associated position on this leaf node.
Protected Member Functions
void	first (btree_iter_impl< K, V > &iter) const
	Positions the iterator at the first element on this tree.
void	last (btree_iter_impl< K, V > &iter) const
	Positions the iterator at the "end" element.
void	next (btree_iter_impl< K, V > &iter) const
	Moves the iterator to the next element.
void	prev (btree_iter_impl< K, V > &iter) const
	Moves the iterator to the previous element.
Friends
class	const_btree_node_iter< K, V >

---

Detailed Description

template<typename K, typename V>
class fairport::btree_node_leaf< K, V >

Represents a leaf node in a BTree structure.

Classes which model a leaf of a BTree structure inherit from this. They have a total of three simple virtual functions to implement:

• num_values, from btree_node
• get_key(uint pos), from btree_node
• get_value(uint pos)

  Parameters:

  K	The key type. Must be LessThan comparable.
  V	The value type

Definition at line 131 of file btree.h.

---

Constructor & Destructor Documentation

template<typename K, typename V>

virtual fairport::btree_node_leaf< K, V >::~btree_node_leaf

(

)

[inline, virtual]

Definition at line 134 of file btree.h.

---

Member Function Documentation

template<typename K, typename V>

void fairport::btree_node_leaf< K, V >::first

(

btree_iter_impl< K, V > &

iter

)

const [inline, protected, virtual]

Positions the iterator at the first element on this tree.

Parameters:

[in,out]

iter

Iterator state class

Implements fairport::btree_node< K, V >.

Definition at line 151 of file btree.h.

template<typename K, typename V>

virtual const V& fairport::btree_node_leaf< K, V >::get_value

(

uint

pos

)

const [pure virtual]

Returns the value at the associated position on this leaf node.

Parameters:

[in]

pos

The position to retrieve the value for

Returns:

The value at the requested position

Implemented in fairport::subnode_leaf_block, fairport::bth_leaf_node< K, V >, and fairport::bt_leaf_page< K, V >.

template<typename K, typename V>

void fairport::btree_node_leaf< K, V >::last

(

btree_iter_impl< K, V > &

iter

)

const [inline, protected, virtual]

Positions the iterator at the "end" element.

Parameters:

[in,out]

iter

Iterator state class

Implements fairport::btree_node< K, V >.

Definition at line 153 of file btree.h.

template<typename K, typename V >

const V & fairport::btree_node_leaf< K, V >::lookup

(

const K &

key

)

const [virtual]

Looks up the associated value for a given key.

Exceptions:

key_not_found<K>

if the requested key is not in this btree

Parameters:

[in]

key

The key to lookup

Returns:

The associated value

Implements fairport::btree_node< K, V >.

Definition at line 292 of file btree.h.

template<typename K, typename V>

void fairport::btree_node_leaf< K, V >::next

(

btree_iter_impl< K, V > &

iter

)

const [protected, virtual]

Moves the iterator to the next element.

Parameters:

[in,out]

iter

Iterator state class

Implements fairport::btree_node< K, V >.

Definition at line 306 of file btree.h.

template<typename K, typename V>

void fairport::btree_node_leaf< K, V >::prev

(

btree_iter_impl< K, V > &

iter

)

const [protected, virtual]

Moves the iterator to the previous element.

Parameters:

[in,out]

iter

Iterator state class

Implements fairport::btree_node< K, V >.

Definition at line 330 of file btree.h.

---

Friends And Related Function Documentation

template<typename K, typename V>

friend class const_btree_node_iter< K, V > [friend]

Reimplemented from fairport::btree_node< K, V >.

Definition at line 150 of file btree.h.

---

The documentation for this class was generated from the following file:

• fairport/util/btree.h
