The fundamental page structure which forms the basis of the two BTrees. More...

#include <disk.h>

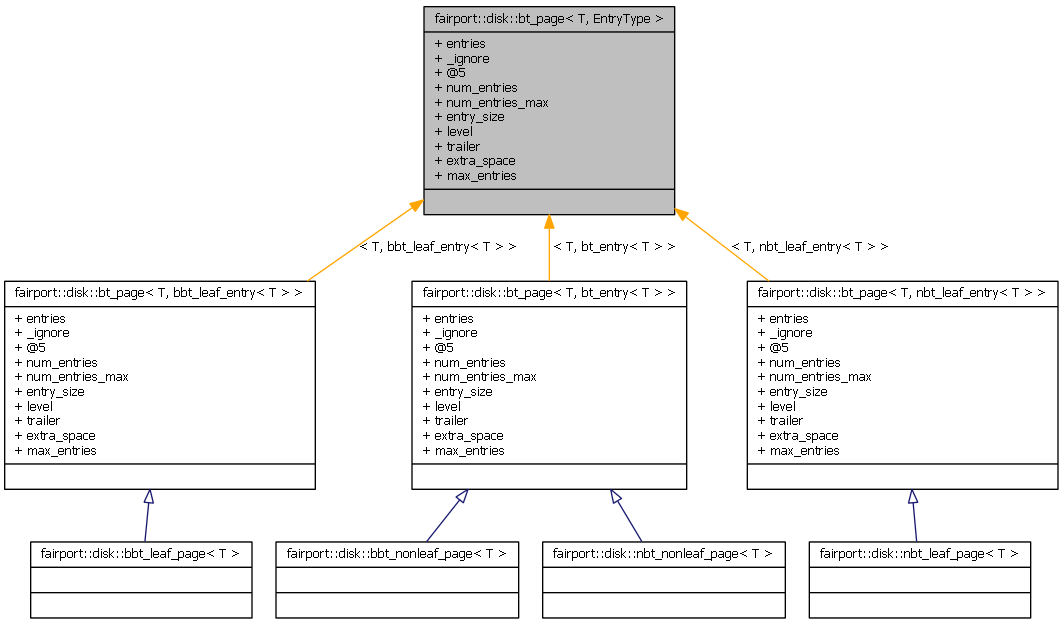

Inheritance diagram for fairport::disk::bt_page< T, EntryType >:

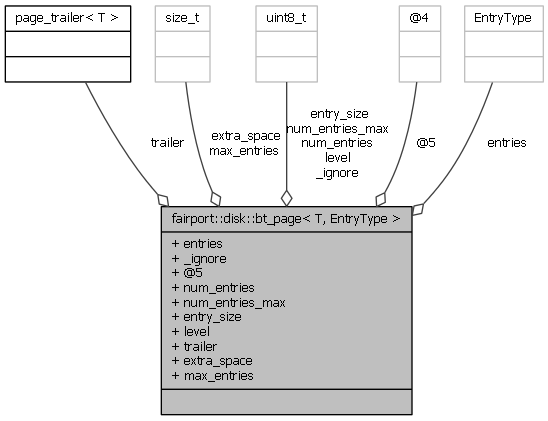

Collaboration diagram for fairport::disk::bt_page< T, EntryType >:

Public Attributes
union {
EntryType entries [max_entries]
byte _ignore [extra_space]
};
byte	num_entries
	Number of entries on this page.
byte	num_entries_max
	Maximum number of entries on this page.
byte	entry_size
	The size of each entry.
byte	level
	The level of this page. A level of zero indicates a leaf.
page_trailer< T >	trailer
	The page trailer.
Static Public Attributes
static const size_t	extra_space = page<T>::page_data_size - sizeof(T)
static const size_t	max_entries = extra_space / sizeof(EntryType)
	Maximum number of entries on a page.

Detailed Description

template<typename T, typename EntryType>
struct fairport::disk::bt_page< T, EntryType >

The fundamental page structure which forms the basis of the two BTrees.

Generally speaking, the generic form of a BTree page contains a fixed array of entries, followed by metadata about those entries and the page. The entry type (and entry size, and thus the max number of entries) varies between NBT and BBT pages.

Template Parameters:

T	ulonglong for a unicode store, ulong for an ANSI store
EntryType	The type of entry on this page. In practice either a bbt_leaf_entry, nbt_leaf_entry, or bt_entry

See also:: [MS-PST] 2.2.2.7.7.1

Definition at line 828 of file disk.h.
