Disk Layer

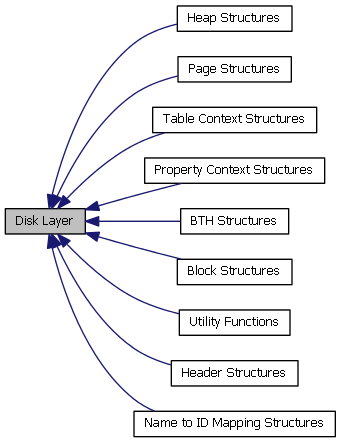

Collaboration diagram for Disk Layer:

Classes
struct	fairport::disk::block_reference< T >
	The combination of the id and physical location of a block or page. More...
Modules
	Header Structures
	Utility Functions
	Page Structures
	Block Structures
	Heap Structures
	BTH Structures
	Property Context Structures
	Table Context Structures
	Name to ID Mapping Structures
Files
file	disk.h
	Disk data structure definitions.
Functions
void	fairport::disk::permute (void *pdata, ulong cb, bool encrypt)
	Modifies the data block in place, according to the permute method.
void	fairport::disk::cyclic (void *pdata, ulong cb, ulong key)
	Modifies the data block in place, according to the cyclic method.

---

Function Documentation

void fairport::disk::cyclic	(	void *	pdata,
		ulong	cb,
		ulong	key
	)		[inline]

Modifies the data block in place, according to the cyclic method.

This algorithm is called to "encrypt" external data if the crypt_method of the file is set to crypt_method_cyclic

Parameters:

[in,out]	pdata	A pointer to the data to "encrypt". This data is modified in place
[in]	cb	The size of the block of data
[in]	key	The key used in the cycle process. Typically this is the block_id of the data being "encrypted".

See also:

[MS-PST] 5.2

Definition at line 1660 of file disk.h.

void fairport::disk::permute	(	void *	pdata,
		ulong	cb,
		bool	encrypt
	)		[inline]

Modifies the data block in place, according to the permute method.

This algorithm is called to "encrypt" external data if the crypt_method of the file is set to crypt_method_permute

Parameters:

[in,out]	pdata	A pointer to the data to "encrypt". This data is modified in place
[in]	cb	The size of the block of data
[in]	encrypt	True if "encrypting", false is unencrypting

See also:

[MS-PST] 5.1

Definition at line 1647 of file disk.h.
