fairport::subnode_block Class Reference

A block which contains information about subnodes. More...

#include <node.h>

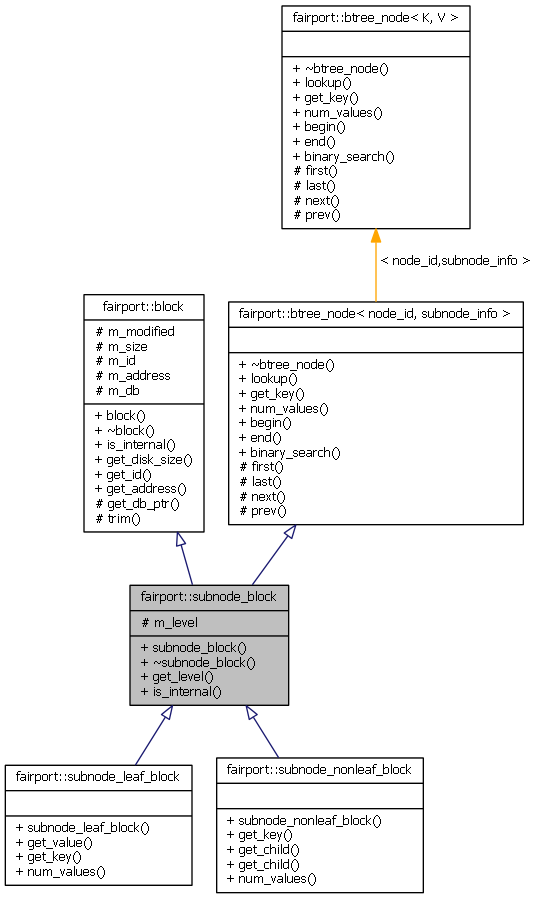

Inheritance diagram for fairport::subnode_block:

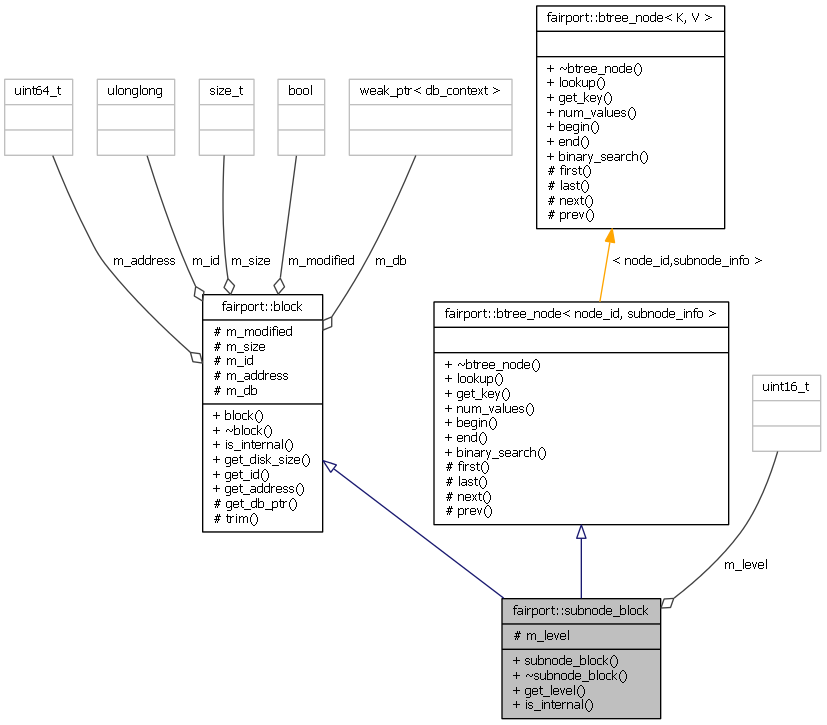

Collaboration diagram for fairport::subnode_block:

List of all members.

Public Member Functions
	subnode_block (const shared_db_ptr &db, const block_info &info, ushort level)
	Construct a block from disk.
virtual	~subnode_block ()
ushort	get_level () const
	Get the level of this subnode_block.
bool	is_internal () const
	Returns the blocks internal/external state.
Protected Attributes
ushort	m_level
	Level of this subnode_block.

---

Detailed Description

A block which contains information about subnodes.

Subnode blocks form a sort of "private NBT" for a node. This class is the root class of that hierarchy, with child classes for the leaf and non-leaf versions of a subnode block.

This hierarchy also models the btree_node structure, inheriting the actual iteration and lookup logic.

See also:

[MS-PST] 2.2.2.8.3.3

Definition at line 656 of file node.h.

---

Constructor & Destructor Documentation

fairport::subnode_block::subnode_block	(	const shared_db_ptr &	db,
		const block_info &	info,
		ushort	level
	)		[inline]

Construct a block from disk.

Parameters:

[in]	db	The database context
[in]	info	Information about this block
[in]	level	The level of this subnode_block (0 or 1)

Definition at line 665 of file node.h.

virtual fairport::subnode_block::~subnode_block

(

)

[inline, virtual]

Definition at line 668 of file node.h.

---

Member Function Documentation

ushort fairport::subnode_block::get_level

(

)

const [inline]

Get the level of this subnode_block.

Returns:

0 for a leaf block, 1 otherwise

Definition at line 672 of file node.h.

bool fairport::subnode_block::is_internal

(

)

const [inline, virtual]

Returns the blocks internal/external state.

Returns:

true if this is an internal block, false otherwise

Implements fairport::block.

Definition at line 674 of file node.h.

---

Member Data Documentation

ushort fairport::subnode_block::m_level [protected]

Level of this subnode_block.

Definition at line 677 of file node.h.

---

The documentation for this class was generated from the following file:

• fairport/ndb/node.h
