fairport::external_block Class Reference

Contains actual data. More...

#include <node.h>

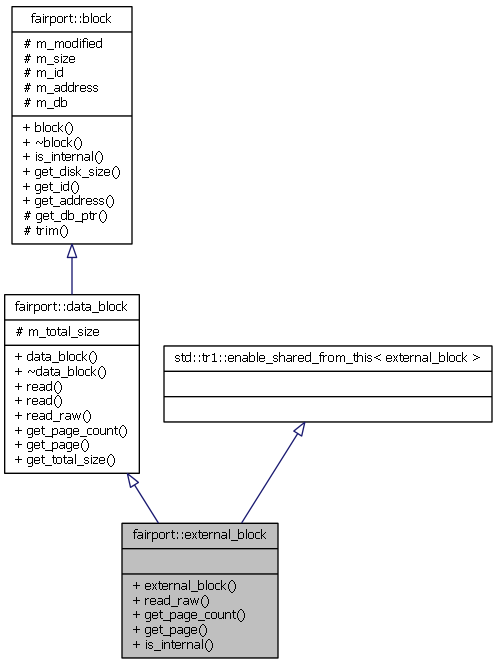

Inheritance diagram for fairport::external_block:

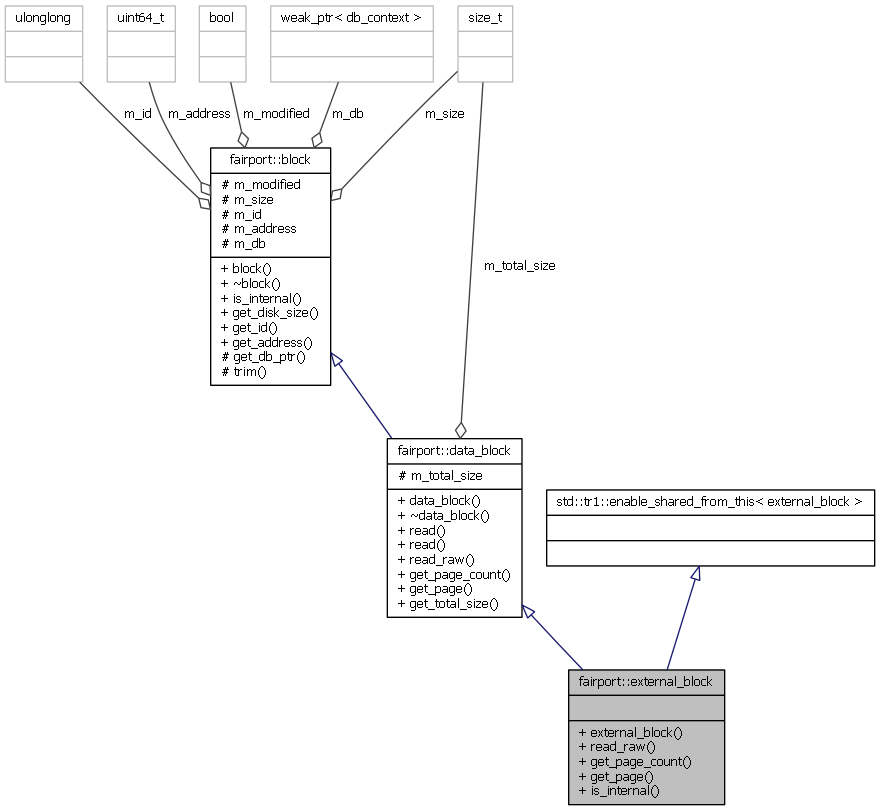

Collaboration diagram for fairport::external_block:

List of all members.

Public Member Functions
	external_block (const shared_db_ptr &db, const block_info &info, size_t max_size, std::vector< byte > buffer)
	Construct an external_block from disk.
size_t	read_raw (byte *pdest_buffer, size_t size, ulong offset) const
	Read data from this block.
uint	get_page_count () const
	Get the number of physical pages in this data_block.
std::tr1::shared_ptr < external_block >	get_page (uint page_num) const
	Get a specific page of this data_block.
bool	is_internal () const
	Returns the blocks internal/external state.

---

Detailed Description

Contains actual data.

An external_block contains the actual data contents used by the higher layers. This data is also "encrypted", although the encryption/decryption process occurs immediately before/after going to disk, not here.

See also:

[MS-PST] 2.2.2.8.3.1

Definition at line 611 of file node.h.

---

Constructor & Destructor Documentation

fairport::external_block::external_block	(	const shared_db_ptr &	db,
		const block_info &	info,
		size_t	max_size,
		std::vector< byte >	buffer
	)		[inline]

Construct an external_block from disk.

Parameters:

[in]	db	The database context
[in]	info	Information about this block
[in]	max_size	The maximum possible size of this block
[in]	buffer	The actual external data (decoded)

Definition at line 622 of file node.h.

---

Member Function Documentation

std::tr1::shared_ptr< fairport::external_block > fairport::external_block::get_page

(

uint

page_num

)

const [inline, virtual]

Get a specific page of this data_block.

Note:

In this context, "page" refers to an external_block

Exceptions:

out_of_range

If page_num >= get_page_count()

Parameters:

[in]

page_num

The ordinal of the external_block to get, zero based

Returns:

The requested external_block

Implements fairport::data_block.

Definition at line 953 of file node.h.

uint fairport::external_block::get_page_count

(

)

const [inline, virtual]

Get the number of physical pages in this data_block.

Note:

In this context, "page" refers to an external_block

Returns:

The total number of external_blocks under this data_block

Implements fairport::data_block.

Definition at line 631 of file node.h.

bool fairport::external_block::is_internal

(

)

const [inline, virtual]

Returns the blocks internal/external state.

Returns:

true if this is an internal block, false otherwise

Implements fairport::block.

Definition at line 634 of file node.h.

size_t fairport::external_block::read_raw	(	byte *	pdest_buffer,
		size_t	size,
		ulong	offset
	)		const [inline, virtual]

Read data from this block.

Parameters:

[out]	pdest_buffer	The location to read the data into
[in]	size	The amount of data to read
[in]	offset	The location to read from

Returns:

The amount of data read

Implements fairport::data_block.

Definition at line 961 of file node.h.

---

The documentation for this class was generated from the following file:

• fairport/ndb/node.h
