fairport::bth_node< K, V > Class Template Reference

The object which forms the root of the BTH hierarchy. More...

#include <heap.h>

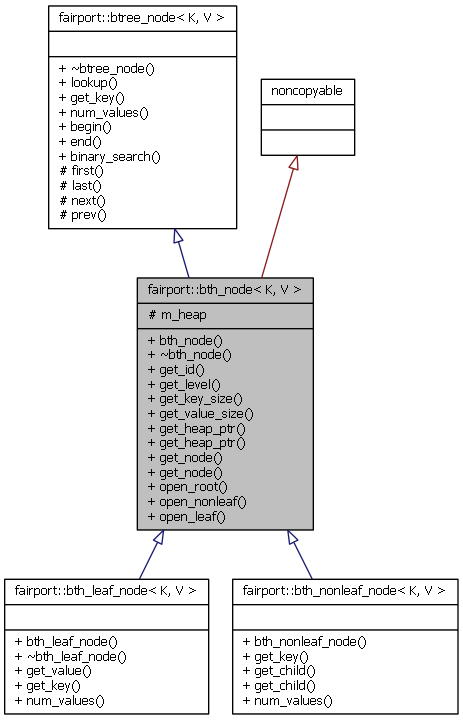

Inheritance diagram for fairport::bth_node< K, V >:

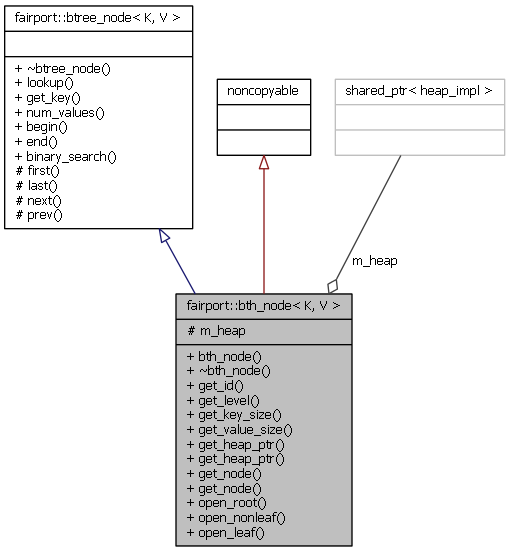

Collaboration diagram for fairport::bth_node< K, V >:

List of all members.

Public Member Functions
	bth_node (const heap_ptr &h, heap_id id, ushort level)
	Construct a bth_node object.
virtual	~bth_node ()
heap_id	get_id () const
	Return the heap_id of this bth_node.
ushort	get_level () const
	Return the leve of this bth_node.
size_t	get_key_size () const
	Return the key size of this bth.
size_t	get_value_size () const
	Return the value size of this bth.
const heap_ptr	get_heap_ptr () const
	Returns the heap this bth_node is in.
heap_ptr	get_heap_ptr ()
	Returns the heap this bth_node is in.
const node &	get_node () const
	Get the node underlying this BTH.
node &	get_node ()
	Get the node underlying this BTH.
Static Public Member Functions
static std::tr1::shared_ptr < bth_node< K, V > >	open_root (const heap_ptr &h, heap_id bth_root)
	Opens a BTH node from the specified heap at the given root.
static std::tr1::shared_ptr < bth_nonleaf_node< K, V > >	open_nonleaf (const heap_ptr &h, heap_id id, ushort level)
	Open a non-leaf BTH node.
static std::tr1::shared_ptr < bth_leaf_node< K, V > >	open_leaf (const heap_ptr &h, heap_id id)
	Open a leaf BTH node.
Protected Attributes
heap_ptr	m_heap

---

Detailed Description

template<typename K, typename V>
class fairport::bth_node< K, V >

The object which forms the root of the BTH hierarchy.

A BTH is a simple tree structure built using allocations out of a heap. bth_node forms the root of the object hierarchy representing this tree. The child classes bth_nonleaf_node and bth_leaf_node contain the implementation and represent nonleaf and leaf bth_nodes, respectively.

Because a single bth_node is backed by a HN allocation (max 3.8k), most BTH "trees" consist of a BTH header which points directly to a single BTH leaf node.

This hierarchy also models the btree_node structure, inheriting the actual iteration and lookup logic.

Template Parameters:

K	The key type for this BTH
V	The value type for this BTH

See also:

[MS-PST] 2.3.2

Definition at line 278 of file heap.h.

---

Constructor & Destructor Documentation

template<typename K, typename V>

fairport::bth_node< K, V >::bth_node	(	const heap_ptr &	h,
		heap_id	id,
		ushort	level
	)		[inline]

Construct a bth_node object.

Parameters:

[in]	h	The heap to open out of
[in]	id	The id to interpret as a non-leaf BTH node
[in]	level	The level of this non-leaf node (must be non-zero)

Definition at line 303 of file heap.h.

template<typename K, typename V>

virtual fairport::bth_node< K, V >::~bth_node

(

)

[inline, virtual]

Definition at line 305 of file heap.h.

---

Member Function Documentation

template<typename K, typename V>

const heap_ptr fairport::bth_node< K, V >::get_heap_ptr

(

)

const [inline]

Returns the heap this bth_node is in.

The heap this bth_node is in

Definition at line 322 of file heap.h.

template<typename K, typename V>

heap_ptr fairport::bth_node< K, V >::get_heap_ptr

(

)

[inline]

Returns the heap this bth_node is in.

The heap this bth_node is in

Definition at line 325 of file heap.h.

template<typename K, typename V>

heap_id fairport::bth_node< K, V >::get_id

(

)

const [inline]

Return the heap_id of this bth_node.

Returns:

the heap_id of this bth_node

Definition at line 309 of file heap.h.

template<typename K, typename V>

size_t fairport::bth_node< K, V >::get_key_size

(

)

const [inline]

Return the key size of this bth.

Returns:

the key size of this bth

Definition at line 315 of file heap.h.

template<typename K, typename V>

ushort fairport::bth_node< K, V >::get_level

(

)

const [inline]

Return the leve of this bth_node.

Returns:

the leve of this bth_node

Definition at line 312 of file heap.h.

template<typename K, typename V>

const node& fairport::bth_node< K, V >::get_node

(

)

const [inline]

Get the node underlying this BTH.

Returns:

the node

Definition at line 329 of file heap.h.

template<typename K, typename V>

node& fairport::bth_node< K, V >::get_node

(

)

[inline]

Get the node underlying this BTH.

Returns:

the node

Definition at line 332 of file heap.h.

template<typename K, typename V>

size_t fairport::bth_node< K, V >::get_value_size

(

)

const [inline]

Return the value size of this bth.

Returns:

the value size of this bth

Definition at line 318 of file heap.h.

template<typename K , typename V >

std::tr1::shared_ptr< fairport::bth_leaf_node< K, V > > fairport::bth_node< K, V >::open_leaf	(	const heap_ptr &	h,
		heap_id	id
	)		[inline, static]

Open a leaf BTH node.

Parameters:

[in]	h	The heap to open out of
[in]	id	The id to interpret as a leaf BTH node

Definition at line 473 of file heap.h.

template<typename K , typename V >

std::tr1::shared_ptr< fairport::bth_nonleaf_node< K, V > > fairport::bth_node< K, V >::open_nonleaf	(	const heap_ptr &	h,
		heap_id	id,
		ushort	level
	)		[inline, static]

Open a non-leaf BTH node.

Parameters:

[in]	h	The heap to open out of
[in]	id	The id to interpret as a non-leaf BTH node
[in]	level	The level of this non-leaf node (must be non-zero)

Definition at line 442 of file heap.h.

template<typename K , typename V >

std::tr1::shared_ptr< fairport::bth_node< K, V > > fairport::bth_node< K, V >::open_root	(	const heap_ptr &	h,
		heap_id	bth_root
	)		[inline, static]

Opens a BTH node from the specified heap at the given root.

Exceptions:

sig_mismatch	(FAIRPORT_VALIDATION_LEVEL_WEAK) If this allocation doesn't have the BTH stamp
logic_error	If the specified key/value type sizes do not match what is in the BTH header

Parameters:

[in]	h	The heap to open out of
[in]	bth_root	The allocation containing the bth header

Definition at line 416 of file heap.h.

---

Member Data Documentation

template<typename K, typename V>

heap_ptr fairport::bth_node< K, V >::m_heap [protected]

Definition at line 335 of file heap.h.

---

The documentation for this class was generated from the following file:

• fairport/ltp/heap.h
